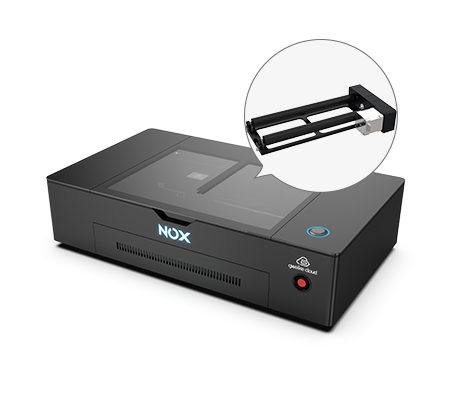

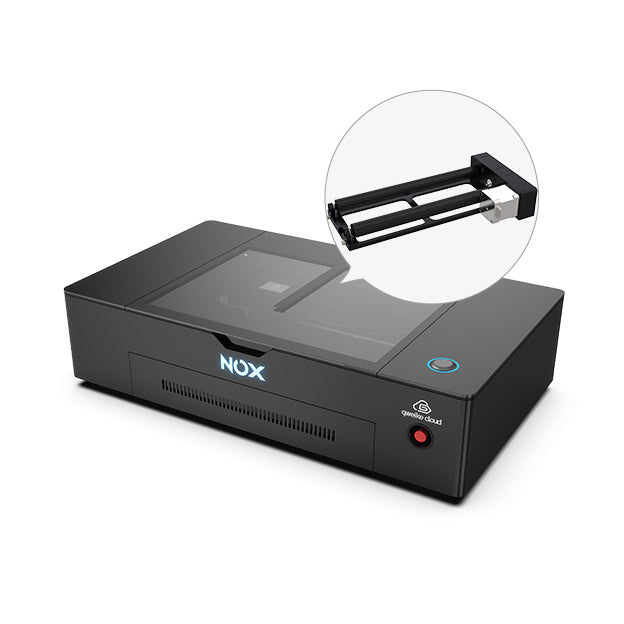

gweike cloud NOX 45W CO2 Laser Cutter & Engraver
gweike cloud NOX 45W CO2 Laser Cutter & Engraver
Product Parameters
| Laser Power | CO2 laser 45W |
| Machine Dimensions | 38.2"*22.2"*9.2" (970mm*565mm*234.5mm) |
| Processing Area | 20.08" (510mm)*11.8" (300mm) |
| Maxinum working height | 20"(51mm) |

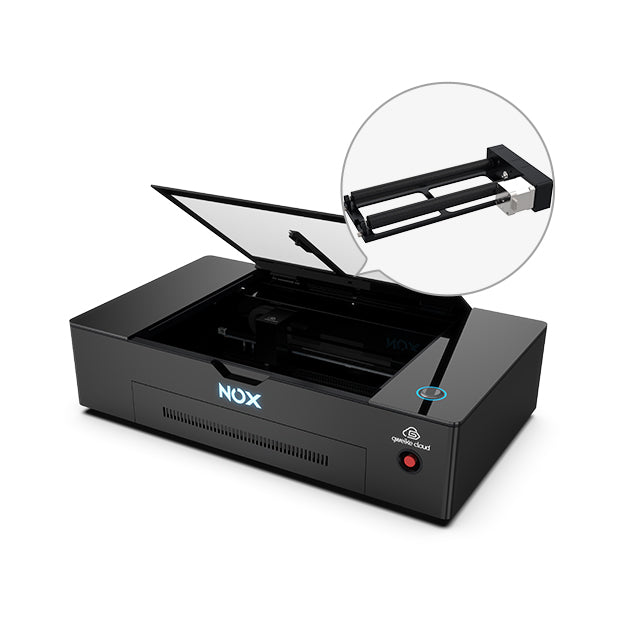

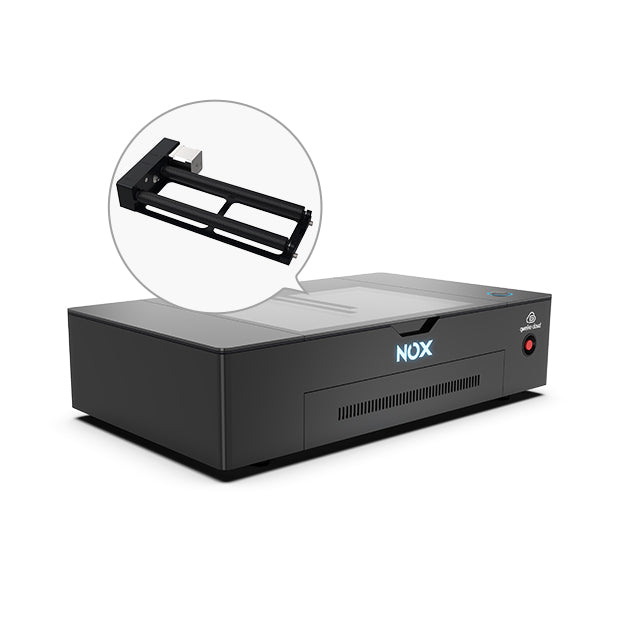

| Rotary Engraving diameter | 30mm-74mm |
| Rotary Engraving Length | ≤245mm |
| Camera | support |
| Weight | 42.6kg |
| software | RDWorks(provided); LightBurn(supported) |
| Connection / Transmission | Wi-Fi, USB, Ethernet |
| Supported File Type | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| Power Supply | AC 110-220V±10%,50-60Hz |
| Gross Power | 550W |
| Noise Rating | ≤70dB |
| Max. Carving Speed | 500mm/s |
| Precision | 0.001” (0.025mm) |
| Laser Tube Life | 10000 hours |
Super early bird price: $1999, pay $500 before April 30th, enjoy $500 off
Gweike Cloud NOX Pre-order
Super Early Bird Price
$500 down payment
Early Bird Price
$700 down payment
*Payment(difference) should be completed by June 7th
*Shipping will be arranged in order from June 8th
*Subscribe to get more about NOX Pre-order
Gweikecloud NOX
Time: 2Min 16s
Other
Time: 9Min 34s
Sparkle Your Creation with Gweike cloud Materials
- Plywood
- Coating Metal
- Acrylic
- Rubber
- Food
- Paper
- Leather
- Rock
LIGHTBURN
Uses the industry standard layout, editing, and control software, LightBurn, to ‘talk’ directly to your laser without the use of additional software.

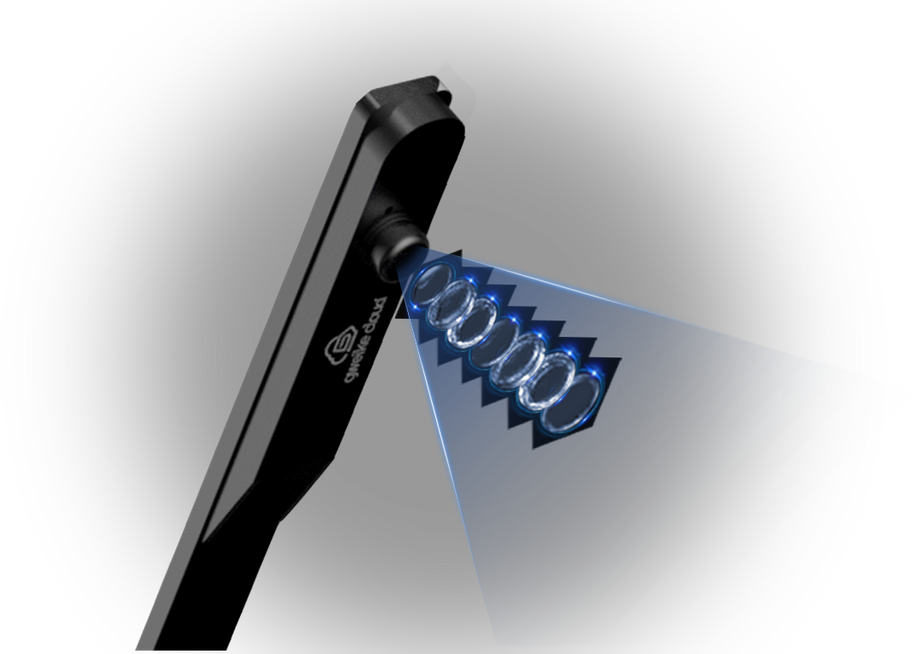

Live Camera Preview
Adopt 5mp wide-angle camera to precisely locate the position of the design on the material, monitor the working condition of the machine in real time intelligently extract the pattern from the surface of any object, and cut or engrave out the recognized pattern.

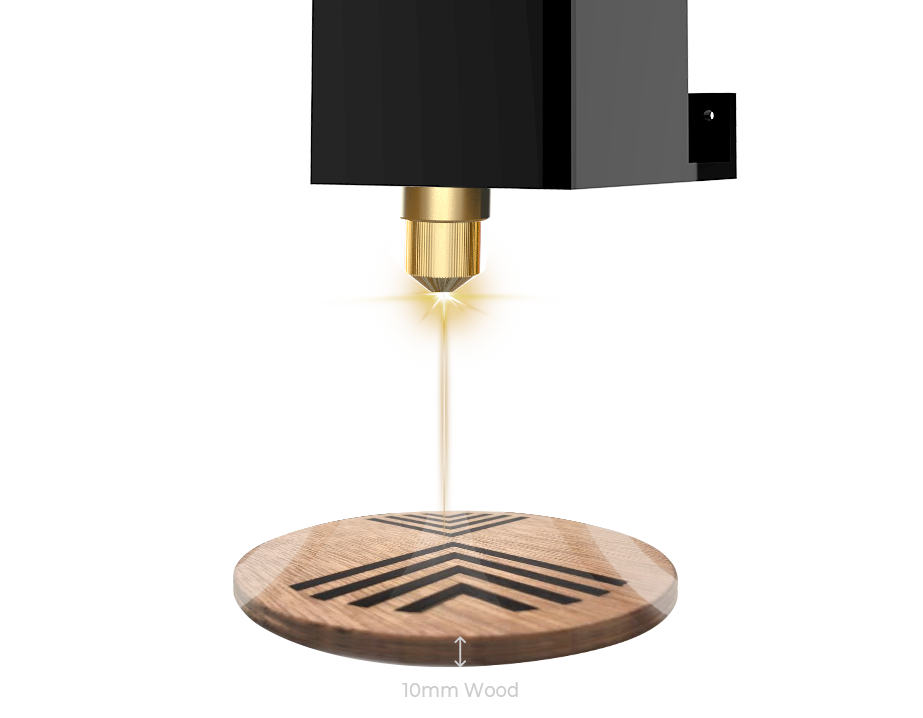

Super Air Assist
Effective laser Lens Protection / Neat Clear Cutting / Super Noisecancellng / Noise reduction by 20dB

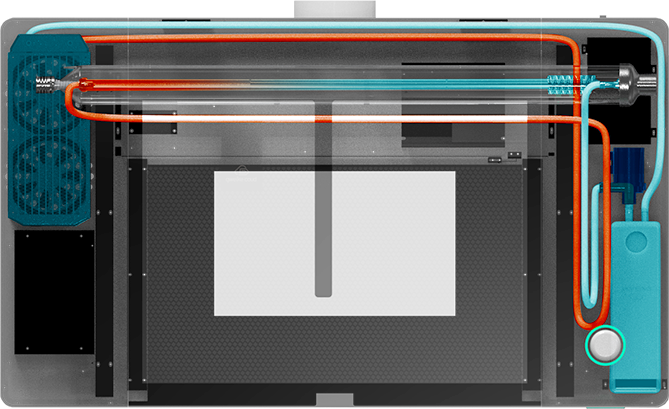

Build-in Water Chiller
Boost production speed by optimizing process temperatures.
Energy Savings & Quiet Operation.
Emergency Stop & Safe for Children
Adopt fully enclosed structural design to give users the best protection. Products are CE-certified, FCC-certified, FDA-certified, all electronic components comply with 3C standard
Set Up In Minute
Easy installation and ready to use right out of the box. Only need connect the power cord and turn on the power, you can start creating right away.
Specs Summary
- Tech Specs
- NOX vs RPO
- Material Cuts & Engraves
Laser Power 45W
Laser Type CO₂ Glass Laser Tube
Lifespan 10000h
Safety Guard Class I (FDA Certified)
Work Table Area 20.08" (510mm)*11.8" (300mm)
Max. Workpiece Height(without honeycomb tray) 2''（51mm)
Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)
Max. Cutting Depth 0.59''（15mm） Basswood
Max. Carving Speed 500mm/s
Carving Precision 0.001” (0.025mm)
Noise Rating ≤70dB
Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF
Camera High-resolution Ultra-wide Camera
Number of Pixels (Effective) 5MP
Visible Area 19.29'' x 11.42''
Positioning AI Visual Positioning Error range ≤ 2mm
Operating Systems Windows/macOS
Control Software RDWorks(provided); LightBurn(supported)
Connection / Transmission Wi-Fi, USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.
Power AC 110-220V±10%,50-60Hz
Work Consumption (without fan) 550W
Nonoperating Temperature 0~45°C
Relative Humidity 5~90°C
Operating Ambient Temperature 0~35°C
Processing Area 20.08" (510mm)*11.8" (300mm)
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Weight 45.6kg
Cameras: 5 MP ultra-wide-angle camera wide angle & macro √
Water Chiller √
Dual high-efficiency internal LED strips √
| gweike cloud NOX | gweike cloud BASIC | gweike cloud PRO | |
| Laser Power | 45W | 50W | 50W |
| Control Software | Gweikecloud Offline, Lightburn | Gweikecloud Web Based,Gweikecloud Offline, Lightburn | Gweikecloud Web Based,Gweikecloud Offline, Lightburn |
| Rotary | × | × | √ |
| Max. Engraving Speed | 500mm/s | 600mm/s | 600mm/s |
| Delivery Time | Pre order from Mar, 8, Shipping starts from June, 7 | 7-15 days | 7-15 days |
| Laser Tube Warranty Period | 6 Months | 12 Months | 12 Months |
| Free Material Package (worth 119USD) | × | √ | √ |
| Material | Cut Thickness | Engrave |
|---|---|---|
| Wood | 9mm | √ |
| MDF | 5mm | √ |
| Acrylic | 7mm | √ |
| Paper | 18mm | √ |
| Leather | 9mm | √ |
| Delrin | 7mm | √ |
| Plastic | 7mm | √ |
| Melamine | 5mm | √ |
| Mylar | 4mm | √ |
| Rubber | 5mm | √ |
| Pressboard | 18mm | √ |
| Fabric | 15mm | √ |
| Cloth | 15mm | √ |
| Cork | 11mm | √ |
| Matte Board | 9mm | √ |
| Fiberglass | 9mm | √ |
| Glass | × | √ |
| Coated Metals | × | √ |
| Ceramic | × | √ |
| Marble | × | √ |
| Mother of Pearl | × | √ |
| Painted Metals | × | √ |
| Tile | × | √ |
| Corian | × | √ |
| Anodized Aluminum | × | √ |
