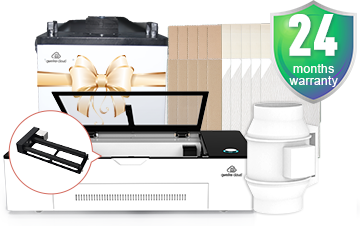

gweike cloud pro 55W Bundle
gweike cloud pro 55W Bundle
Product Parameters
| Laser Power | CO2 laser 50W |
| Machine Dimensions | 38.2"*22.2"*9.2" (970mm*565mm*234.5mm) |
| Processing Area | 20.08" (510mm)*11.8" (300mm) |
| Maxinum working height | 20"(51mm) |
| Rotary Engraving diameter | 30mm-74mm |
| Rotary Engraving Length | ≤245mm |
| Camera | support |
| Weight | 42.6kg |
| software | Gweikecloud Web Based,Gweikecloud Offline, Lightburn |
| Connection / Transmission | Wi-Fi, USB, Ethernet |
| Supported File Type | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| Power Supply | AC 110-220V±10%,50-60Hz |
| Gross Power | 550W |
| Noise Rating | ≤70dB |
| Max. Carving Speed | 600mm/s |
| Precision | 0.001” (0.025mm) |
| Laser Tube Life | 10000 hours |
Couldn't load pickup availability

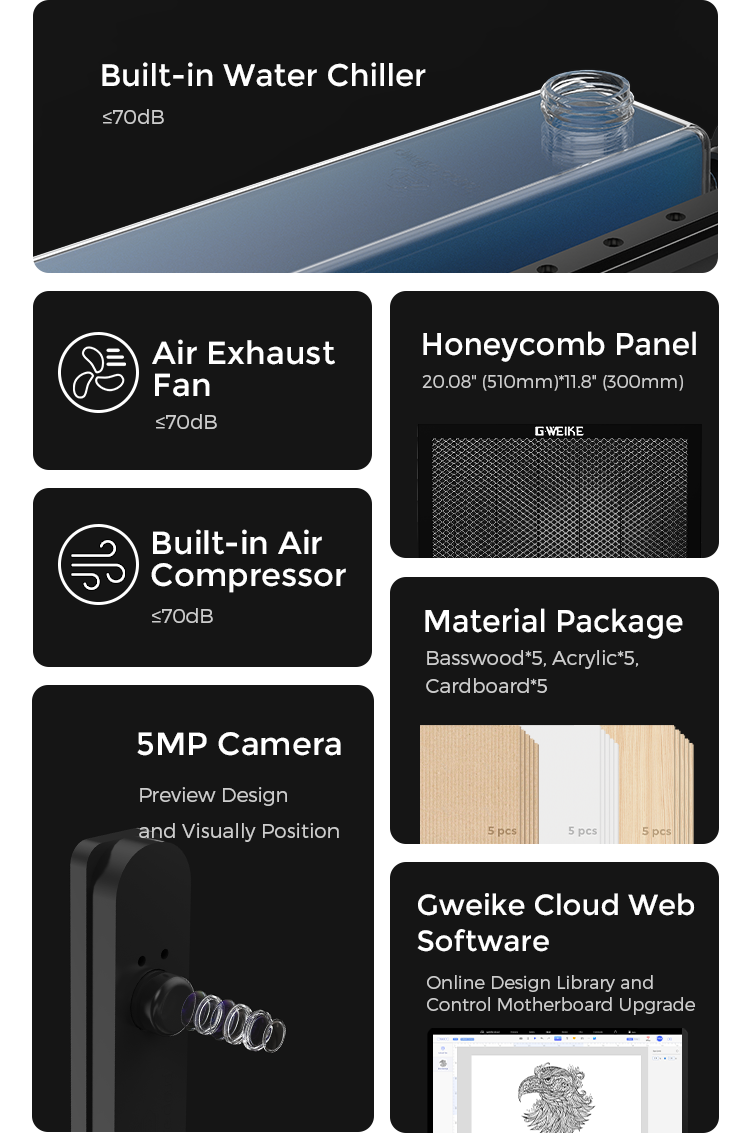

- 1. Built-in Water Chiller, ≤70dB
- 2. Air Exhaust Fan, ≤70dB
- 3. Built-in Air Compressor, ≤70dB
- 4. 5MP Camera, Preview Design and Visually Position.
- 5. Honeycomb Panel, 20.08" (510mm)*11.8" (300mm)

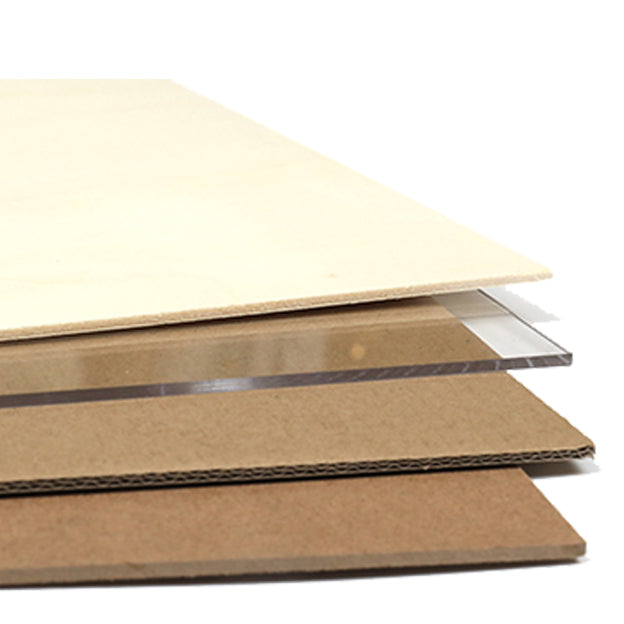

- 6. Material Package：Basswood*5, Acrylic*5, Cardboard*5
- 7. Gweike Cloud Web Software with Free Online Design Library and Control Motherboard Upgrade
Comparison Between Pro Machines
-
Laser Tube Power
Focusing
Warranty Time
Max Cutting Thickness
3mm Basswood Cutting Speed
-
55W
Autofocus
2 Years
20mm（Acrylic) 25mm (Cherry wood)
60mm/s
-
50W
Software control
1 Year
16mm（Acrylic) 20mm (Cherry wood)
45mm/s
Material: MDF
Power: 80%
Speed: 600 mm/s
Live Camera Preview
Industrial Frame Design
Venting System
The wind rate is significantly improved and the wind volume is larger. Easier to remove smoke and exhaust fumes. Effectively solve the gas retention caused by the production process.
Noise-canceling
During normal printing, gweike cloud has an average noise level of about 70 dB(A). Equipped with a much quieter fan the speed can be adjusted automatically according to the real-time temperature, realizing a noise level decrease of about 16 dB(A)[3], so that you can truly focus on your making.
Gweike Cloud Web APP(provided)
Free Online Design library (only for web app)
If you don’t have professional drawing design experience or you don’t have time to design drawings, Gweikecloud provides massive materials for free download or you can purchase online
-
Control Mother Board Upgrade
The machine control mother board can be upgraded, constantly upgraded with new features for free.
-
Auto-alarm
When there are problems during machine operation, the cloud control software will show a prompt.
What Other Advantages?
3D Engraving
It can engrave on sphere, tilt plane, curved surface and different height object. It can create 3D image on diamond,woods, and acrylics ,etc.
Machine Bottom Feeding Design
Top and bottom compartments can be used together allows for a bigger work area.
Cloud online Operation
Your Gweikecloud runs from a web browser, which means there’s no software to install - ever. Drag and drop your designs right onto your material. Upgrades are instant and seamless
Online Design Catalog
If you do n’t have professional drawing design experience or you do n’t have time to design drawings, Gweikecloud provides massive materials for free download or you can purchase online
- 3D Engraving
- Machine Bottom Feeding Design
- Cloud online Operation
- Online Design Catalog
What Are Included
Specs Summary
- Tech Specs
- gweike cloud VS glowforge
- Material Cuts & Engraves
- Delivery Time
Laser Power 55W
Laser Type CO₂ Glass Laser Tube
Lifespan 10000h
Safety Guard Class I (FDA Certified)
Work Table Area 20.08" (510mm)*11.8" (300mm)
Max. Workpiece Height(without honeycomb panel) 2''（51mm)
Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)
Max. Cutting Depth 0.8-1''（20-25mm） Basswood
Max. Carving Speed 600mm/s
Carving Precision 0.001" (0.025mm)
Noise Rating ≤70dB
Rotary Engraving diameter 10mm-180mm （with risers）
Rotary Engraving Length ≤245mm
Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF
Camera High-resolution Ultra-wide Camera
Number of Pixels (Effective) 5MP
Visible Area 19.29'' x 11.42''
Positioning AI Visual Positioning Error range ≤ 2mm
Operating Systems Windows/macOS
Control Software Gweikecloud Web Based,Gweikecloud Offline, Lightburn
Connection / Transmission Wi-Fi, USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.
Power AC 110-220V±10%,50-60Hz
Work Consumption (without fan) 550W
Nonoperating Temperature 0~45°C
Relative Humidity 5~90°C
Operating Ambient Temperature 0~35°C
Processing Area 20.08" (510mm)*11.8" (300mm)
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Weight 45.6kg
Cameras: 5 MP ultra-wide-angle camera wide angle & macro √
Full autofocus √
Water Chiller √
Dual high-efficiency internal LED strips √
| gweike cloud Pro | Glowforge | |
| Engraving Speed | 600mm/s | 200mm/s(Pro) |
| Working Area | 510mm*300mm | 495mm x 279mm |
| Rotary Support | Yes | No |
| Software | Lightburn,ﾠOffline software,ﾠgweike cloud Web base | Glowforge Web base |
| Laser Power | 55W | 40W(Basic/Plus), 45W (Pro) |
| USB Port Support | Yes | No |

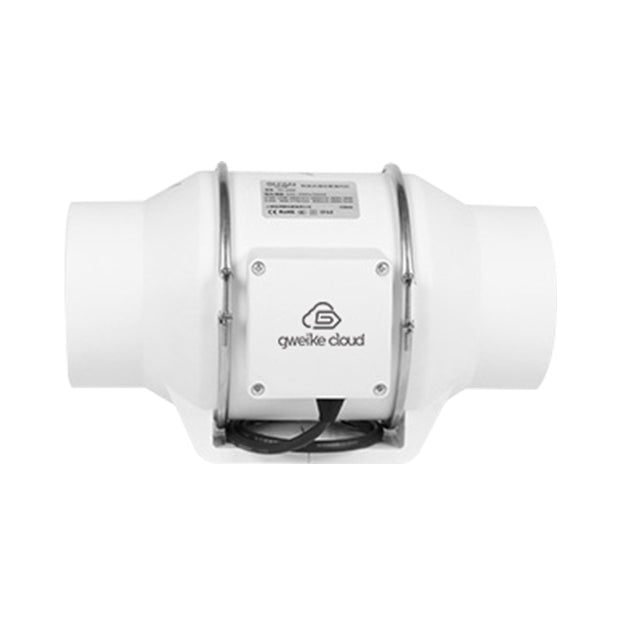

| Inline Duct fan | Yes | No |
| After-sale Support | 7*24 online service | Appointment only, by email |
| Delivery | 7-14 days, oversea warehouse | 2 weeks, longer delivery time(Basic) |
| Warranty Time | 12 month | 12 months,ﾠ 6 months(Basic) |
| Price | $2,999ﾠ | $6,995(Pro) |
| Material | 55w | 50w | Engrave |
|---|---|---|---|
| Wood | 25mm | 20mm | √ |
| Acrylic | 20mm | 15mm | √ |
| MDF | 13mm | 9mm | √ |
| Paper | 15mm | 10mm | √ |
| Leather | 15mm | 13mm | √ |
| Delrin | 18mm | 14mm | √ |
| Plastic | 18mm | 14mm | √ |
| Melamine | 10mm | 8mm | √ |
| Mylar | 9mm | 7mm | √ |
| Rubber | 10mm | 8mm | √ |
| Pressboard | 30mm | 20mm | √ |
| Fabric | 30mm | 20mm | √ |
| Cloth | 30mm | 20mm | √ |
| Cork | 20mm | 15mm | √ |
| Matte Board | 18mm | 13mm | √ |
| Fiberglass | 18mm | 13mm | √ |
| Glass | × | × | √ |
| Coated Metals | × | × | √ |
| Ceramic | × | × | √ |
| Marble | × | × | √ |
| Mother of Pearl | × | × | √ |
| Painted Metals | × | × | √ |
| Tile | × | × | √ |
| Corian | × | × | √ |
| Anodized Aluminum | × | × | √ |
| Package | |
|---|---|
| size | 114*73*36cm 72*35*32cm |
| weight | 58kgﾠﾠﾠﾠ17kg |
| Delivery address | Shipping from | Logistics Providers | Freight ($) | Estimated Delivery Time (day) |
|---|---|---|---|---|
| United States | United States | DHL/FedEX/UPS | Free | 7~15 |
| United States * Hawaii/Alaska/Guam/Puerto Rico | China | DHL/FedEX/UPS | $200 | 30~45 |
| Canada | Canada | DHL/FedEX/UPS | Free | 7~15 |
| Austria, Belgium, Bulgaria, Croatia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden. | German | DHL/FedEX/UPS | Free | 7~15 |
| Japan | Japan | Sagawa | Free | 3~5 |
| Other countries | China | By air or sea | confirm with us | 15-60 |
