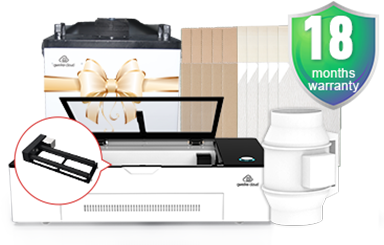

gweike cloud pro 50W Bundle

gweike cloud pro 50W Bundle

Regular price $2,689.00
Sale price $2,689.00 Regular price $4,299.00
Sale Sold out
Product Parameters
×
Laser Power CO2 laser 50W
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Processing Area 20.08" (510mm)*11.8" (300mm)
Maxinum working height 20"(51mm)
Rotary Engraving diameter 30mm-74mm
Rotary Engraving Length ≤245mm
Camera support
Weight 42.6kg
software Gweikecloud Web Based,Gweikecloud Offline, Lightburn
Connection / Transmission Wi-Fi, USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Power Supply AC 110-220V±10%,50-60Hz
Gross Power 550W
Noise Rating ≤70dB
Max. Carving Speed 600mm/s
Precision 0.001” (0.025mm)
Laser Tube Life 10000 hours
Payments:
PayPal Visa Mastercard American Express Discover JCB Klarna Affirm Google Pay Apple Pay
  • 1. Built-in Water Chiller, ≤70dB

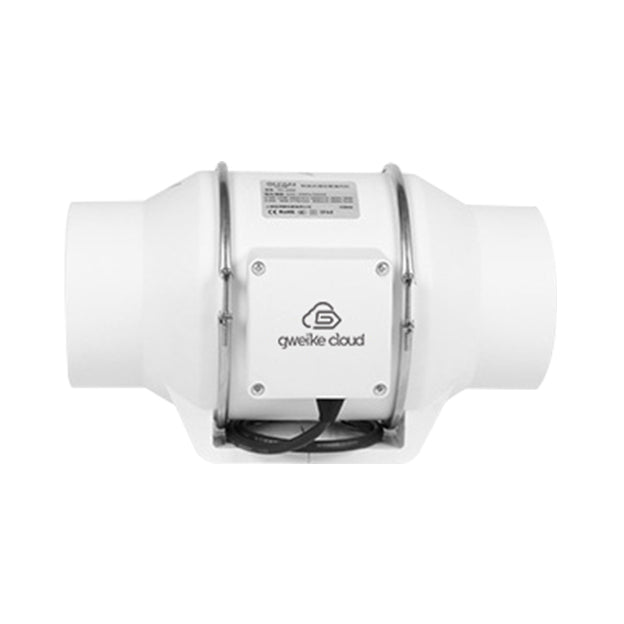

  • 2. Air Exhaust Fan, ≤70dB
  • 3. Built-in Air Compressor, ≤70dB
  • 4. 5MP Camera, Preview Design and Visually Position.
  • 5. Honeycomb Panel, 20.08" (510mm)*11.8" (300mm)

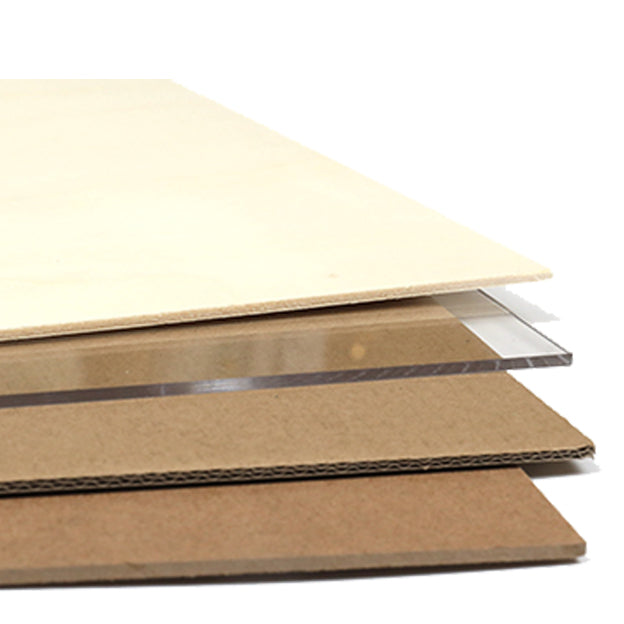

  • 6. Material Package:Basswood*5, Acrylic*5, Cardboard*5

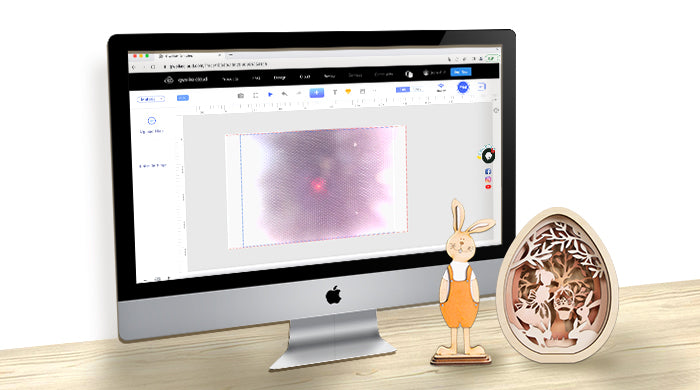

  • 7. Gweike Cloud Web Software with Free Online Design Library and Control Motherboard Upgrade
View full details

Sparkle Your Creation with Gweike cloud Materials

make art out of acrylic, wood, rubber, leather, metals and more
  • Plywood
  • Acrylic
  • Leather
  • Coating Metal
  • Paper
  • Rock
  • Food
  • Rubber

Material: MDF

Power: 80%

Speed: 600 mm/s

Industrial Frame Design

Easy to Focus, Precise & Quick

Easy to Focus, Precise & Quick

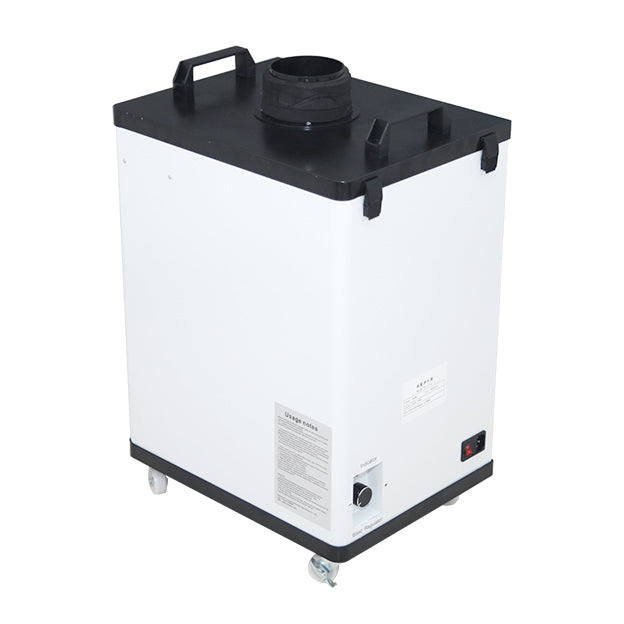

Venting System

The wind rate is significantly improved and the wind volume is larger. Easier to remove smoke and exhaust fumes. Effectively solve the gas retention caused by the production process.

Noise-canceling

During normal printing, gweike cloud has an average noise level of about 70 dB(A). Equipped with a much quieter fan the speed can be adjusted automatically according to the real-time temperature, realizing a noise level decrease of about 16 dB(A)[3], so that you can truly focus on your making.

What Other Advantages?

3D Engraving

It can engrave on sphere, tilt plane, curved surface and different height object. It can create 3D image on diamond,woods, and acrylics ,etc.

  • 3D Engraving
  • Machine Bottom Feeding Design
  • Cloud online Operation

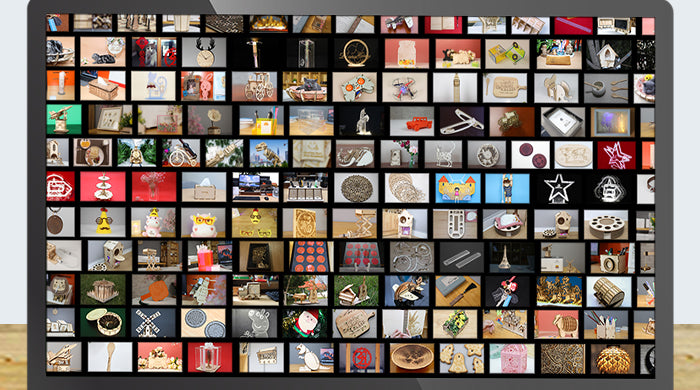

  • Online Design Catalog

Specs Summary

  • Tech Specs
  • gweike cloud VS glowforge
  • Material Cuts & Engraves
  • Delivery Time
Laser System

Laser Power 50W

Laser Type CO₂ Glass Laser Tube

Lifespan 10000h

Safety Guard Class I (FDA Certified)


Work Area

Work Table Area 20.08" (510mm)*11.8" (300mm)

Max. Workpiece Height(without honeycomb tray) 2''(51mm)

Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)


Materials Processing

Max. Cutting Depth 0.59''(15mm) Basswood

Max. Carving Speed 600mm/s

Carving Precision 0.001” (0.025mm)

Noise Rating ≤70dB


AI Camera Information

Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF

Camera High-resolution Ultra-wide Camera

Number of Pixels (Effective) 5MP

Visible Area 19.29'' x 11.42''

Positioning AI Visual Positioning Error range ≤ 2mm


Software Requirements

Operating Systems Windows/macOS

Control Software Gweikecloud Web Based,Gweikecloud Offline, Lightburn

Connection / Transmission Wi-Fi, USB, Ethernet

Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.

Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.


Environmental Requirement

Power AC 110-220V±10%,50-60Hz

Work Consumption (without fan) 550W

Nonoperating Temperature 0~45°C

Relative Humidity 5~90°C

Operating Ambient Temperature 0~35°C


Weight & Dimensions

Processing Area 20.08" (510mm)*11.8" (300mm)

Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)

Weight 42.6kg


Supported Accessories

Cameras: 5 MP ultra-wide-angle camera wide angle & macro √

Full autofocus √

Water Chiller √

Dual high-efficiency internal LED strips √
